How to Tell if Your Power Supply or Motherboard Is Bad

Few things are as frustrating as pressing your PC’s power button and getting
either total silence or a sad little fan twitch. When your computer won’t
start, randomly reboots, or crashes for no obvious reason, two prime suspects
jump to the top of the list: the power supply (PSU) and the
motherboard.

The problem? They can fail in similar ways. A bad power supply can make your
system act like it’s possessed, and a failing motherboard can throw errors
that look like RAM, GPU, or even Windows issues. In this guide, we’ll walk
through how to tell if your power supply is bad, how to spot a failing
motherboard, and practical tests you can do at home before ordering parts or
calling in a pro.

Power Supply vs. Motherboard: Why the Difference Matters

The PSU is basically your PC’s heart. It takes AC from the wall and turns it
into the stable DC voltages your components need. If it goes bad, you can see
anything from random shutdowns and freezes to total power loss and burning
smells.

The motherboard is more like the nervous system. It connects your CPU, RAM,
GPU, drives, and ports, routing data and power all over the system. When it
starts to fail, you might see no POST, weird USB issues, dead PCIe slots,
frequent blue screens, or the system refusing to boot even though fans spin.

Misdiagnosing the problem can get expensive fast. Replacing a perfectly good
PSU when the motherboard is dead (or vice versa) is a painful hit to your
budget. That’s why a little structured troubleshooting pays off.

Common Signs of a Bad Power Supply (PSU)

A failing PSU often shows up as power and stability issues, especially when
the system is under load (gaming, video editing, or running many apps at
once). Here are classic signs your power supply might be going bad:

1. No Power or Partial Power

• You press the power button and nothing happens: no fans,
  no lights, no sounds.
• The fans twitch for a split second and then stop. The PC
  never really starts up.
• The system tries to start, then immediately shuts off and
  may repeat this in a short loop.

These symptoms strongly point to the PSU failing to deliver stable power or
not starting at all.

2. Random Shutdowns or Reboots

• The PC shuts off suddenly while gaming or under heavy
  load.
• It reboots without warning, even if temperatures are fine
  and software is stable.
• Crashes become more frequent over time, especially when the GPU or CPU is
  stressed.

This often happens when the PSU can’t supply enough clean power on the 12 V,
5 V, or 3.3 V rails. The system protects itself by shutting down or rebooting.

3. Blue Screens, Freezes, and Weird Instability

A flaky PSU can cause:

• Unexpected blue screens of death (BSOD) with random error codes.
• System freezes where nothing responds and you must hard reset.
• Lock-ups that don’t seem tied to any single app or driver.

These can also be caused by RAM, drivers, or storage, so you have to look at
the whole picture. But when instability appears mainly under load, power is a
major suspect.

4. Burning Smells or Strange Noises

• A faint electrical or burning smell from the PSU area.
• Buzzing, crackling, or high-pitched whining from the PSU.
• The PSU fan making grinding or rattling noises, or not
  spinning at all when it clearly should.

If you ever smell burning or hear crackling from the PSU, shut the PC down,
unplug it, and do not keep using it. A failing PSU can damage other parts or,
in extreme cases, become a fire hazard.

Common Signs of a Bad Motherboard

Motherboard problems can be trickier to pin down because they often masquerade
as RAM, GPU, or CPU issues. Some red flags:

1. No POST, Even Though Fans Spin

• The system powers on: fans spin, lights come on, but there’s
  no display.
• You don’t hear the usual single beep (on systems that have
  a speaker) for a successful POST.
• You remove the RAM, but still get no beep code or error
  LED that would normally complain about missing memory.

If a known-good PSU is powering the system and the board still won’t give any
sign of intelligent life, the motherboard is a prime suspect.

2. Debug LEDs, Beep Codes, or Error Codes

Many modern boards have:

• Debug LEDs that stop on CPU, DRAM, VGA, or BOOT.
• Numeric error codes on a small display.
• Traditional beep codes (e.g., one long beep and two short
  beeps) to indicate hardware faults.

If the codes consistently point to multiple different components or don’t
clear even after reseating RAM and GPU, the problem may be in the board
itself rather than the parts it’s complaining about.

3. Frequent Crashes and Blue Screens After Other Parts Check Out

A failing motherboard can cause:

• Random BSODs, even after clean reinstall of Windows and
  updated drivers.
• Crashes that persist even after testing RAM, swapping GPUs, and checking
  storage.
• Instability when you touch certain ports or wiggle a cable, suggesting a
  failing slot or trace.

4. Dead or Flaky Ports and Slots

• Some USB ports don’t work, regardless of device.
• A PCIe slot (for GPU, Wi-Fi card, etc.) is completely dead, but the card
  works in another system.
• Ethernet, audio, or other on-board features fail intermittently or not at
  all.

When multiple onboard features start dropping like flies, that’s often a sign
of deeper motherboard issues rather than a coincidence of several bad devices.

Quick Comparison: PSU vs. Motherboard Symptoms

Step-by-Step: How to Test Your Power Supply Safely

Important safety note: Never open a PSU case. Even when unplugged, internal capacitors can hold dangerous voltages. Only test it using external methods and basic tools, and if you’re not comfortable, skip straight to a professional or replacement unit.

1. Check the Simple Stuff First

• Make sure the power cable is firmly plugged into the wall and PSU.
• Confirm the power strip or surge protector is turned on, or plug directly
  into the wall to rule it out.
• Check the PSU’s on/off switch (usually marked “I” and “O”)
  is set to “I”.

2. Visual Inspection

• Look at the PSU through its vents for any obvious scorch marks
  or melted plastic.
• Check all power connectors for bent pins or heat damage.
• Pay attention to any lingering electrical or burning smell.

3. Try a Minimal Boot

Disconnect everything nonessential. Leave only:

• Motherboard
• CPU and cooler
• One stick of RAM
• GPU only if you don’t have integrated graphics

If the system now boots or at least reaches POST, a marginal PSU might have
been overloaded by your full setupor another component could be shorting it.

4. Use the Paperclip (Jumper) Test

Many manufacturers describe a “paperclip test” to see if the PSU can power on
by itself. In short:

1. Turn off the PSU and unplug it from the wall.
2. Disconnect all power cables from the motherboard and components.
3. Find the 24-pin ATX connector. Locate the single green wire
   (PS_ON) and any black wire (ground).
4. Bend a metal paperclip and carefully insert one end into the pin for the
   green wire and the other into a black-wire pin.
5. Plug the PSU back into the wall and flip the switch on.

If the PSU fan starts spinning and stays on, it at least can start under no
load. If it doesn’t spin at all, or only twitches then stops, the PSU is
likely bad. This is not a perfect test (it doesn’t simulate real load), but
it’s a useful quick check.

5. Optional: Check Voltages with a Multimeter or PSU Tester

For a more precise check, you can use:

• A PSU tester that plugs directly into the ATX connector
  and shows voltages.
• A multimeter to measure the 12 V, 5 V, and 3.3 V lines.

Generally, readings within about ±5% of their rated values are acceptable. If
you see major dips, spikes, or inconsistent readings, replace the PSU.

6. The Ultimate Test: Swap in a Known-Good PSU

If you have access to another, good-quality PSU with enough wattage, connect
it to your system (24-pin, CPU 8-pin, GPU power if needed) and try to boot.

• If the system now boots and runs stably, your old PSU is very likely the
  culprit.
• If nothing changes, your motherboard or another component is more likely
  to blame.

Step-by-Step: How to Test Your Motherboard

1. Check Indicators and Beep Codes

If your board has debug LEDs or a small numeric display,
watch where it stops. Check the manual to see what the code means. If you
have a tiny speaker connected, listen for beep patterns.

Consistent codes that don’t change even after reseating RAM and GPU, or
trying other sticks/cards, suggest the board itself is struggling.

2. Clear the CMOS

Corrupted BIOS settings can make a good board behave dead. To reset:

1. Turn off the PC and unplug the power cord.
2. Press and hold the power button for 10–20 seconds to discharge.
3. Either move the CMOS reset jumper as directed in your
   manual or remove the coin-cell battery for a few minutes.
4. Replace the jumper or battery, reconnect power, and try again.

If the board still shows no sign of POST with known-good parts, the problem
may go deeper than BIOS settings.

3. Breadboard the System

To rule out case shorts or miswired front panel connectors, remove the
motherboard from the case and test it on a non-conductive surface (like
cardboard):

• Install only CPU, cooler, and one stick of RAM.
• Connect the 24-pin and CPU 8-pin power cables.
• Use a screwdriver to briefly short the two power switch pins on the front
  panel header to turn it on.

If it still won’t POST with a known-good PSU and minimal components, the
board is very likely faulty.

4. Test Without RAM or GPU

Remove the RAM and try to power on. A healthy board usually:

• Gives beep codes about missing memory, or
• Shows a DRAM error LED or debug code.

If you get absolutely nothingno beeps, no LED changeswith a known-good PSU,
the motherboard may be dead.

5. Look for Physical Damage

• Check for bulging or leaking capacitors (tops should be flat).
• Look for darkened areas or scorch marks, especially around
  the CPU socket or power connectors.
• Inspect for bent pins in the CPU socket (especially on
  Intel boards).

Visible damage plus no POST is a strong sign the board needs replacing.

When Both the PSU and Motherboard Might Be Bad

In some scenarios, one failing part takes another down with it. A catastrophic
PSU failure or major power surge can send an overvoltage spike through the
system and damage the motherboard (and sometimes other components too).

Warning signs include:

• A loud pop from the PSU followed by smoke or burning smell.
• The old PSU is clearly blown, and even with a new PSU installed the board
  won’t POST or show any signs of life.
• Multiple components (for example, the board and a drive) die at the same
  time after an electrical event.

In these cases, you may need to replace both the PSU and motherboardand
carefully test the remaining parts before trusting them.

When to Stop DIY and Call a Pro

It’s smart to seek professional help when:

• You smell burning or see scorch marks and are not confident working around
  electronics.
• You’ve already tried a known-good PSU and minimal boot, but still can’t get
  a clear answer.
• The system is still under warranty. Opening sealed parts
  or doing risky testing could void coverage.
• You rely on this PC for work or school and can’t afford extended downtime.

A technician can use specialized tools like load testers, oscilloscopes, and
POST diagnostic cards to zero in on the problem faster.

How to Prevent Future PSU and Motherboard Failures

• Buy a quality PSU from a reputable brand, with enough
  wattage and good efficiency (80 Plus Bronze or better).
• Use a surge protector or UPS to help shield your system
  from spikes and brownouts.
• Keep the case clean and well-ventilated so dust doesn’t
  choke fans and cause overheating.
• Avoid running at the absolute edge of your PSU’s rated wattageleave some
  headroom for safety.
• Update your BIOS and drivers periodically to keep things
  stable and compatible.

Real-World Troubleshooting Experiences

To make all this more concrete, let’s walk through a few common scenarios
that PC owners and technicians often encounter when figuring out whether the
power supply or the motherboard is bad.

Scenario 1: The Gaming PC That Randomly Shuts Down

Imagine a mid-range gaming PC that runs fine on the desktop but randomly
powers off during long gaming sessions. Temperatures look okay, RAM passes a
memory test, and GPU drivers are up to date. Over time, the shutdowns become
more frequent, sometimes followed by a reboot loop where the system turns on
for a few seconds, then powers off again.

A structured troubleshooting approach might go like this:

1. Test with a different wall outlet and bypass the surge protector to rule
   out bad power strips.
2. Try a minimal boot: disconnect extra drives and RGB accessories, and see if
   the issue persists.

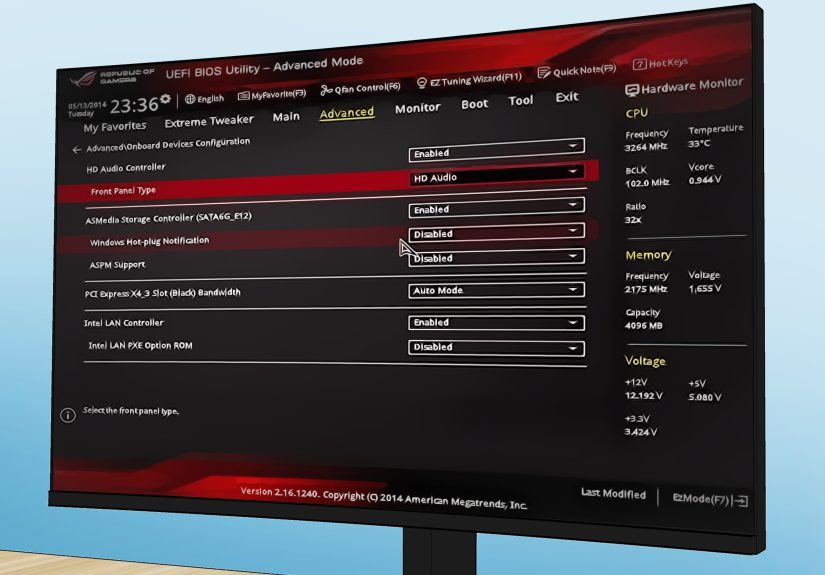

3. Run a heavy GPU and CPU stress test while monitoring voltages in
   BIOS or software. If the 12 V line dips significantly when the system is
   under load, that’s suspicious.
4. Swap in a known-good PSU with a higher wattage rating and repeat the tests.

In many real-world cases, this kind of behavior comes down to an aging or
underrated PSU that can’t handle peak power draw when the GPU and CPU spike
simultaneously. Once replaced with a better unit, the random shutdowns
vanisheven though nothing else changed.

Scenario 2: The System That Powers On but Never Posts

Another common scenario: a PC powers on. The fans spin, lights come on, and
you can hear drives spin up. But there’s no display, no beep, and the monitor
never gets a signal. You try a different HDMI cable and monitor with no luck.

A careful troubleshooting flow might be:

1. Reseat the RAM and try one stick at a time in different slots.
2. Test the GPU in another system, or try a different GPU in this system.
3. Clear the CMOS and check for any change in behavior or new beep codes.
4. Breadboard the system with only CPU, cooler, and one stick of RAM connected
   to a known-good PSU.

If, even in breadboard configuration with a good PSU, the board gives no
display and no meaningful error codes, technicians often conclude the
motherboard has failed. In some cases, a close visual inspection reveals
slight discoloration or damage near the CPU VRM area, hinting at where the
board gave up.

Scenario 3: The After-Surge Mystery

Power surges are notorious for leaving a trail of half-damaged components.
Picture a system that was running when a lightning storm or electrical
incident hit. The PC turns off abruptly. Afterward, pressing the power button
does nothingno fans, no lights, no sound.

The first instinct is to blame the PSU, and that’s often correct. Replacing
the PSU might bring some life back: fans spin, RGB lights up. But now the
system refuses to POST, or crashes seconds after starting. At this point,
it’s reasonable to suspect that the surge not only killed the original PSU
but also damaged sensitive components on the motherboard.

Technicians in this scenario will typically:

• Verify the new PSU is known-good and properly sized.
• Test RAM, GPU, and drives in another system where possible to confirm
  they’re okay.
• Replace the motherboard if it still won’t POST with good parts, assuming
  warranty or budget allows.

This kind of “double failure” is a tough pill to swallow, but it’s a good
reminder of why surge protection and quality PSUs are worth the extra money.

Scenario 4: The Phantom USB Problems

Not every motherboard failure looks dramatic. Sometimes, it starts with
seemingly minor issues, like a few USB ports working intermittently or
stopping entirely. At first, you might blame a cheap USB hub or bad cable.
But over time, more ports fail, the integrated network adapter starts
dropping connections, and the system occasionally crashes when a new USB
device is plugged in.

In these slower-burning cases, the PSU may be fine; the motherboard’s power
delivery or controller chips may be degrading. Swapping the PSU won’t fix it,
but replacing the board usually will. For users who depend heavily on their
portsstreamers, content creators, or gamers with lots of peripheralsthese
subtle motherboard problems can be just as disruptive as a total no-boot
failure.

Final Thoughts

Figuring out whether your power supply or motherboard is bad
isn’t always simple, but a structured approach makes it much less of a
guessing game. Start with obvious symptoms, rule out simpler issues like bad
cables or RAM, then move into targeted tests: minimal boot, paperclip testing
the PSU, breadboarding the motherboard, and swapping in known-good parts.

In general, sudden total power loss, burning smells, and random shutdowns
under load point more toward the PSU. Fans spinning with no POST, dead ports,
and persistent error codes lean toward motherboard trouble. Sometimes both
fail together, especially after a surge, but even then the same logic helps
you map out what to replace first.

Take your time, stay safe around electricity, and don’t hesitate to get help
if you’re unsure. A little careful diagnosis now can save you money, protect
your other components, and get your PC back to doing what it does best
anything other than impersonating a very expensive paperweight.
