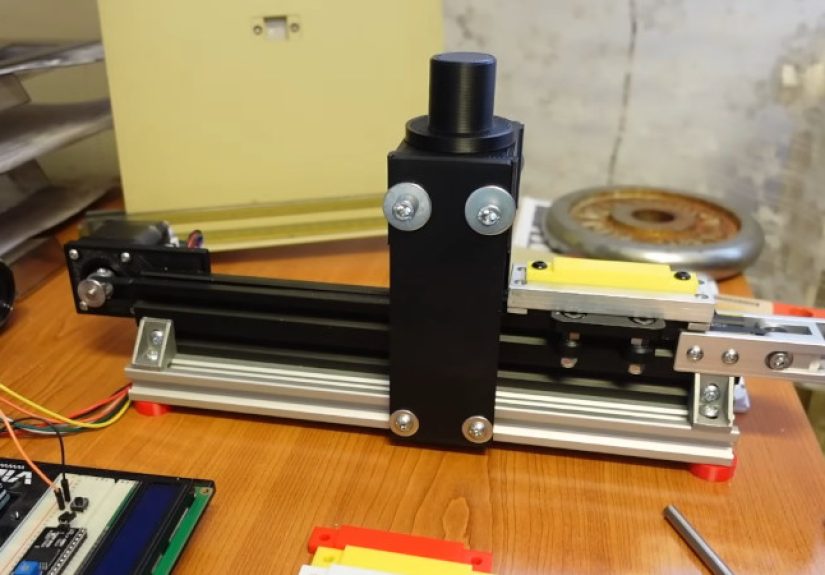

Wear Testing Different 3D Printer Filaments

If you’ve ever printed a “totally functional” gear that turned into a smooth plastic donut after a weekend of use, you’ve already met the villain of this story: wear. Wear is what happens when friction, load, dust, and time quietly sandpaper your part into early retirement. And in 3D printing, wear is extra spicy because layer lines can act like tiny speed bumps that get shaved down over repeated contact.

This article walks through how to wear test common 3D printer filaments (PLA, PETG, ABS/ASA, Nylon, TPU, and filled composites), how to interpret results without fooling yourself, and how to avoid a second, sneakier kind of wear: your filament wearing out your printer hardware.

Two Wear Questions You Should Ask (Before You Print 12 Versions)

1) How fast will the printed part wear out in real use?

Think: sliding guides, bushings, gears, rollers, cam followers, latches, and anything that rubs while carrying load. Here you care about material toughness, friction behavior, heat buildup, and how the printed surface “polishes” over time.

2) How fast will the filament wear out your printer?

Filled filaments (carbon fiber, glass fiber, metal-filled, glow additives, etc.) can be abrasive enough to widen nozzles and rough up the filament path. That changes extrusion and dimensional accuracymeaning your wear test might accidentally become a “mystery calibration puzzle.”

Wear 101: The Four Ways Your Part Loses the Fight

• Abrasive wear: hard particles or rough surfaces grind material away (hello, dust and grit).
• Adhesive wear: microscopic “sticking” and tearing between surfaces under load (common in sliding plastics).
• Fatigue wear: repeated stress causes microcracks and flaking (gears and rollers love this).
• Fretting wear: tiny oscillating movements at contact points (vibration + tight fits = trouble).

With FDM/FFF prints, add a fifth unofficial category: layer-line wear. Peaks get shaved, valleys collect grime, and the contact surface changes as it “runs in.” That’s why early wear rates can look dramatic and then stabilizelike a bad first date that somehow turns into a decent relationship.

How to Wear Test Filaments Without Lying to Yourself

Wear data is notoriously sensitive to test setup. Change one thingload, speed, counter-surface, humidity, print orientationand your “winner” can suddenly become the “why did I print this?” The trick is to pick a test that matches your real application and control variables aggressively.

Step 1: Define the use case (don’t skip this)

A drone landing skid (abrasion + impacts) is not the same as a drawer slide (low load, long travel) which is not the same as a bushing (continuous sliding under pressure). Write down:

• Contact type (sliding, rolling, rubbing, intermittent)
• Load (light touch vs “this is basically a clamp”)
• Speed (slow glide vs fast cycling)
• Environment (dusty shop, outdoors, heat, oils/solvents)
• Counterface material (steel shaft, aluminum rail, another plastic)

Step 2: Borrow from real tribology (standards exist for a reason)

You don’t need a million-dollar lab to think like one. Common lab approaches include:

• Pin-on-disk / ball-on-disk: a “pin” rubs on a rotating disk under controlled load. Great for comparing sliding wear and friction.
• Block-on-ring: a stationary block rubs against a rotating ring. Often used to rank plastics for sliding wear.
• Taber abrasion: rotating abrasive wheels wear down a flat sampleuseful when your real world is scuffing and scraping.

The goal is repeatability: identical sample geometry, consistent contact surfaces, and measurable wear (mass loss, thickness loss, wear volume, or friction trends).

Step 3: Print test coupons that don’t sabotage the experiment

• Use the same nozzle size (and ideally the same nozzle type) for all materials.
• Lock in layer height, perimeter count, and infill so you aren’t accidentally testing “infill strategy.”
• Control orientation: layer direction can affect how a surface fractures or smears under sliding.
• Document your settings (temperature, cooling, speed), because you will forget. Everyone forgets.

Step 4: Condition samples (especially for nylon)

Some materials change behavior dramatically with moisture. Nylon is the big one: if it’s wet, prints can foam, weaken, and turn your wear test into a “brittle bubble sculpture.” For honest comparisons, condition samples consistentlyeither all dried or all stabilized at the same humidity.

Step 5: Measure wear like you mean it

Pick at least two measurement methods so you’re not fooled by one number:

• Mass loss: weigh samples before/after (a 0.01 g scale helps; 0.001 g is nicer).
• Dimensional loss: calipers, micrometer, or a simple go/no-go gauge for bushings.
• Wear track inspection: smartphone macro photos can show scoring, smearing, or delamination.
• Friction trend: even a “pull test” with a luggage scale can track changes over time.

If you want a single “nerdy but useful” metric, compute wear rate as wear volume per load per distance (common in tribology). The math matters less than being consistent across materials.

Material-by-Material: What Wear Testing Usually Reveals

PLA: The Easy Print That’s Not a Wear Hero

PLA is stiff, dimensionally friendly, and prints like a dreamright up until you ask it to act like a gear in a dusty garage. In wear testing, PLA often shows brittle micro-chipping or surface cracking under repeated sliding loads, especially when heat builds up at the contact zone.

Where PLA can still shine: low-load guides, light-duty jigs, cosmetic parts, and prototypes where you’re validating geometry, not lifetime. If PLA wins your wear test, double-check that your load and temperature are realisticPLA is famous for “passing” a test that doesn’t resemble real life.

PETG: The Practical Middleweight for Sliding and Scuffing

PETG tends to be tougher and more ductile than PLA, with better impact tolerance. In wear scenarios, that ductility helps it smear and polish rather than chip. That’s often goodunless the smear turns into sticky debris that increases friction.

PETG is frequently a strong pick for snap-fit enclosures, brackets, and functional parts where you want durability without the warp drama of ABS. For moderate wear applications (light bushings, low-load sliders), PETG can be a very workable baseline material.

ABS and ASA: Tougher, More Heat-Tolerant, Often Better for Real-World Abuse

ABS is a classic for functional parts because it can take impacts and higher temperatures better than PLA. In wear tests, ABS often performs better than PLA when heat and repeated stress are involved. ASA prints similarly to ABS but is typically chosen when weather resistance matters (outdoor clips, fixtures, and parts that see UV exposure).

The wear behavior you’ll often see: ABS/ASA surfaces can “run in” and smooth out, reducing friction after an initial break-in. The catch is print quality: if you have layer separation or warp-induced geometry changes, wear results can look worse than the material deserves.

Nylon (PA6/PA12 and blends): The Wear-Friendly Workhorse (If You Treat It Right)

If there’s a “default” answer for FDM wear parts, it’s often nylonbecause nylon is generally tough, fatigue-resistant, and suitable for parts that move. Industrial nylon 12 is commonly positioned for durability and wear/fatigue resistance applications like tooling and functional components.

The big asterisk: moisture management. Wet nylon prints poorly and weakly; dry nylon can print smooth and strong. If your nylon wear test looks inconsistent, moisture is often the hidden variable.

In practice, nylon parts often show lower, steadier wear rates in sliding contact than PLA/PETG when printed well, and they’re less likely to crack under cyclic loading. Nylon 12 variants are also often described as having lower moisture absorption than other nylons, which helps stability.

TPU/TPE: The “Rubber That Refuses to Scuff” Category

Flexible filaments are interesting in wear testing because they can absorb energy instead of grinding themselves away. TPU is commonly valued for shock absorption, vibration dampening, and abrasion resistancewhich is exactly what you want for wheels, bumpers, gaskets, feet, and protective covers.

In a sliding wear setup, TPU often “polishes” and maintains grip rather than producing brittle debris. The downside: TPU can heat up under friction and deform, so your fixture design matters (support the part so it doesn’t squirm out of the test like a bar of soap).

Filled Composites: Stronger Parts, Meaner on Nozzles

Carbon fiber or glass fiber filled filaments often improve stiffness and dimensional stability. That can help parts resist deformation and keep geometry under loaduseful in wear applications where shape matters. But the filler can be abrasive, which affects both printing hardware and, sometimes, counterfaces in the real world.

The wear-testing reality check: a stiffer composite part may wear less by deforming less, but it can also be harsher on mating parts (especially softer plastics). If you’re printing a gear that meshes with another plastic gear, you might be trading “my gear lasts longer” for “my gear eats the other gear faster.”

Don’t Ignore “Printer Wear”: Abrasive Filaments Can Change Your Results

If your nozzle diameter quietly grows during testing, your extrusion width changes, your layer bonding changes, your part dimensions drift, and suddenly you’re not comparing filamentsyou’re comparing “filament plus mystery nozzle evolution.”

What actually wears when you run abrasive filaments?

• Nozzles: brass wears fastest; hardened or coated nozzles last longer.
• Drive gears and PTFE/Bowden components: abrasive filament can chew up the path and create dust.
• First-layer behavior: nozzle tip flattening changes nozzle-to-bed distance and can cause inconsistent extrusion.

Many composite filament makers explicitly warn that carbon fiber and metal composites can cause premature wear in the filament travel path, and that nozzle wear can show up as tip flattening, dimensional changes, and process instability.

Hardware upgrades that keep wear tests honest

• Hardened or coated nozzles for anything filled or abrasive.
• Keep a baseline “control nozzle” for non-abrasive materials so you don’t accidentally bias results.
• Measure nozzle condition (or at least track print quality drift) during long test campaigns.

Some nozzle manufacturers publish hardness and friction figures for wear-focused nozzles and coatings, which is handy for choosing test hardware. The key idea is simple: if you’re testing abrasive materials, your nozzle should be tougher than your filament’s filler.

A Practical Wear Test Plan You Can Run in a Home Shop

Test A: Sliding wear “bushing on shaft” (realistic and easy)

1. Print identical bushings in each filament (same wall count, same layer height, same orientation).
2. Use the same metal shaft (smooth steel rod works well) and the same applied load (a hanging weight or spring clamp setup).
3. Run a fixed number of cycles (for example, a drill-driven crank slider, or a linear back-and-forth rig).
4. Measure: inside diameter growth, mass loss, and any heat-related deformation.

This test is especially revealing for nylon, tribo-focused filaments, and TPU. It also exposes print-quality problems fast: if you have layer separation or under-extrusion, wear won’t be subtleit will be loud, messy, and slightly insulting.

Test B: Abrasion “scuff plate” (good for skids and contact surfaces)

1. Print flat plates with identical top-surface settings (same top layers, same speed, same cooling).
2. Rub against a fixed abrasive surface under controlled weight for fixed strokes (think: DIY scuff rig).
3. Measure thickness loss or mass loss, plus surface texture change over time.

This setup often highlights TPU/TPE strength in abrasion scenarios and can separate “chips and flakes” materials from “smears and polishes” materials.

Test C: Gear wear “mesh test” (the one everyone wants, and it’s tricky)

Gear wear depends heavily on alignment, lubrication, and heat. If you run this test:

• Use the same mating gear material every time (metal or a single standard plastic).
• Run at the same torque and speed.
• Check backlash growth and tooth profile rounding periodically.

If you can’t control torque, at least control speed and duty cycle, and treat results as comparativenot absolute lifetime predictions.

Interpreting Results: What “Good Wear” Looks Like

A filament “wins” wear testing when it shows:

• Stable friction over time (no sudden spikes that signal debris buildup or melting)
• Predictable, gradual material loss (not catastrophic cracking or delamination)
• Geometry retention (it keeps its shape under load and temperature)
• Friendly behavior toward the mating surface (it doesn’t grind the other part to death)

Watch out for “false wins.” For example:

• A very hard, filled filament may wear slowly but damage the mating part faster.
• A flexible filament may show little mass loss but creep and deform enough to fail functionally.
• A nylon test may look amazing on day one and terrible on day three if moisture control changes mid-test.

Where Each Filament Tends to Shine in Wear Applications

• PLA: low-load, low-heat, short-life prototypes and “it just needs to work once” fixtures.
• PETG: general-purpose durable parts, light sliding, snap fits, and moderately abrasive contact.
• ABS/ASA: tougher functional parts, higher-heat environments, and outdoor use (ASA).
• Nylon (especially well-managed): bushings, gears, hinges, living components, repeated cycling.
• TPU/TPE: abrasion-heavy and impact-heavy parts: wheels, feet, bumpers, grips, seals.
• Filled composites: stiffness-critical parts where maintaining geometry mattersjust budget for nozzle strategy.

Experience Section (Extra ): What “Real” Wear Testing Feels Like

Wear testing sounds clean on paper: print samples, run a test, measure results, crown a champion, ride into the sunset. In reality, it’s more like running a tiny plastic gladiator league where the referee (your test rig) also occasionally falls apart.

The first surprise most people hit is that the test itself becomes the project. You start with a simple sliding setupmaybe a bushing moving along a metal rodthen realize your “consistent load” isn’t consistent because the clamp angle changes with every cycle. So you add a weight. Then the weight swings. So you add guides. Now you’ve built a medieval torture device for polymers, and you’re oddly proud of it.

The second surprise is how quickly print quality turns into wear performance. A PETG bushing printed with slightly under-extruded perimeters can chew itself up faster than a properly printed PLA bushing, which feels wrong until you remember you’re testing a manufactured object, not a chemistry textbook. You’ll often find that the “best filament” is the one you can print consistently with strong perimeters and a smooth contact surface. That realization alone can save you from buying five exotic spools you don’t actually need.

Next comes moisture, especially if nylon enters the chat. In wear testing, nylon can look like a superstar when it’s dry and dialed-insmooth sliding, steady behavior, and fewer “mystery cracks.” But if conditions drift (a spool left out, a rainy day, a different storage bin), performance can wobble. The weird part is you might not notice immediately: instead, you’ll see extra surface fuzz, slightly weaker walls, and then your wear track suddenly gets ugly. The lesson is boring but powerful: consistent conditioning equals meaningful results.

Then you try a carbon-fiber-filled filament because you want stiffness, and suddenly your nozzle is the one being wear tested. You start noticing first-layer changes, extrusion that feels a hair “fatter,” or edges that don’t look as crisp. It’s not that the filament is badit’s that abrasive fillers can be hard on hardware. The practical workaround in a test campaign is to treat your nozzle like a consumable test instrument: use an abrasion-resistant nozzle for abrasive materials, keep a separate nozzle for non-abrasives, and don’t mix them if you’re trying to compare results fairly.

Another “real life” thing: wear is rarely uniform. You’ll see polish in one area, gouging in another, and a weird little hotspot where debris collects like it’s paying rent. That’s why photos and notes matter. A simple habit helps: every time you stop a test, take the same three pictures (overall part, contact surface close-up, mating surface close-up). After a few materials, patterns appear. TPU might look almost unchanged but slightly “burnished.” PETG might show smooth smear bands. PLA might show tiny chips or white stress marks. Those visuals often tell the story better than a single mass-loss number.

Finally, the most satisfying moment in wear testing isn’t when you find “the best filament.” It’s when you can say, “For this kind of contact, at this load, against that surface, this filament behaves predictably.” That’s the point: not universal winnersjust informed choices that keep your parts from turning into plastic confetti.
